RM Nimbus Keyboard Clean

The Nimbus PC-186 used a non standard keyboard protocol.
It used the XT scancode
The keyboard also doesn't produce its own clock signal like a normal XT but instead works on 9600 baud.
It used inverted TTL protocol (essentially rs232 but at lower voltages)

The example above is a typical version, produced by Alphameric (Woking, UK)

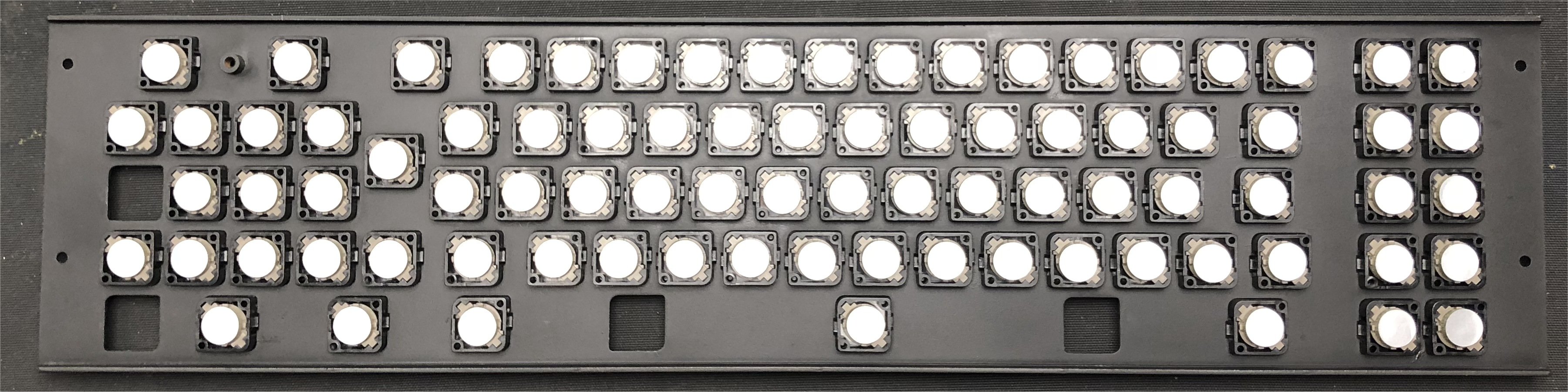

It used foam and foil switches.

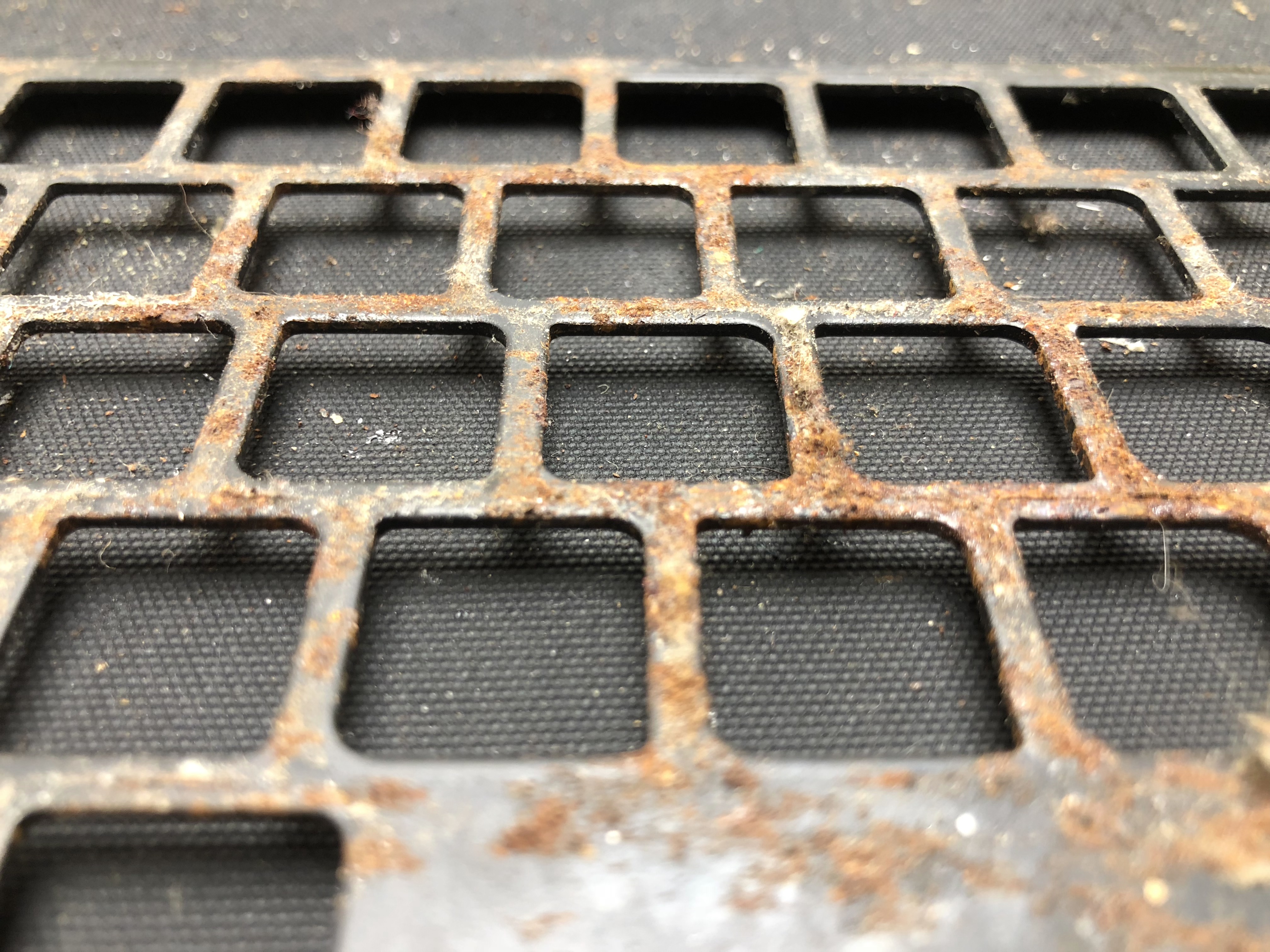

After 30 years of use, the ones here in the museum needed a clean!

RM Nimbus Keyboard Refurbish 4 RM Nimbus Keyboard Refurbish 16 RM Nimbus Keyboard Refurbish 3 RM Nimbus Keyboard Refurbish 15 RM Nimbus Keyboard Refurbish 9 RM Nimbus Keyboard Refurbish 2 RM Nimbus Keyboard Refurbish 14 RM Nimbus Keyboard Refurbish 8 RM Nimbus Keyboard Refurbish 1 RM Nimbus Keyboard Refurbish 13 RM Nimbus Keyboard Refurbish 7 RM Nimbus Keyboard Refurbish 12 RM Nimbus Keyboard Refurbish 6 RM Nimbus Keyboard Refurbish 11 RM Nimbus Keyboard Refurbish 5 RM Nimbus Keyboard Refurbish 10

RM Nimbus Keyboard Clean
